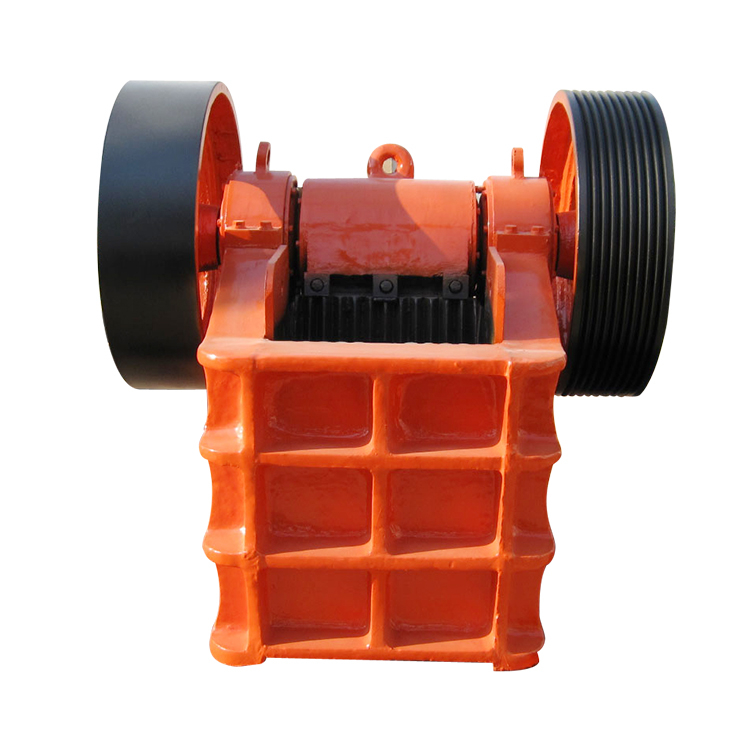

PE系列颚式破碎机
BESTLINK
该破碎机适用于抗压强度低于245Mpa的岩石和矿石的粗碎和中碎。
类型 | 进料口(mm) | 最大进料尺寸(mm) | 排料口调整范围(mm) | 处理量(t / h) | 偏心轴转速(r / min) | 电机功率(kW) | 总重量(t) | 尺寸 |
---|---|---|---|---|---|---|---|---|
PE-150x250 | 150x250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.6 | 720 * 660 * 850 |
PE-200x300 | 200x300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1 | 910 * 750 * 990 |
PE-200x350 | 200x350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.3 | 1000 * 870 * 990 |
PE-250x400 | 250x400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300 * 1090 * 1270 |
PE-400x600 | 400x600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730 * 1730 * 1630 |
PE-500x750 | 500x750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980 * 2080 * 1870 |
PE-600x900II | 600x900 | 500 | 65-160 | 50-180 | 250 | 55-75 | 17 | 2190 * 2206 * 2300 |
PE-600x900 | 600x900 | 500 | 75-200 | 60-200 | 250 | 75 | 20 | 2290 * 2290 * 2400 |
PE-750x1060 | 750x1060 | 630 | 80-140 | 115-330 | 250 | 110 | 29 | 2660 * 2430 * 2800 |
PE-870x1060 | 870x1060 | 660 | 200-260 | 290-336 | 250 | 110 | 31.5 | 2810 * 2430 * 2800 |
PE-900x1060 | 900x1060 | 685 | 230-290 | 160-400 | 250 | 110 | 33 | 2870 * 2420 * 2940 |
PE-1000x1200 | 1000x1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480 * 3876 * 3300 |
PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200 * 3300 * 3500 |
PE-150x750 | 150x750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200 * 1530 * 1060 |
PE-250x750 | 250x750 | 210 | 25-60 | 13-35岁 | 330 | 30 | 5.5 | 1380 * 1750 * 1540 |
PE-250x1000 | 250x1000 | 210 | 25-60 | 16-52 | 330 | 37 | 7 | 1560 * 1950 * 1390 |
PE-250x1200 | 250x1200 | 210 | 25-60 | 20-61 | 330 | 45 | 8.5 | 2140 * 1660 * 1500 |
PE-300x1300 | 250x1200 | 250 | 20-90 | 16-105 | 300 | 75 | 11 | 2720 * 1950 * 1600 |
